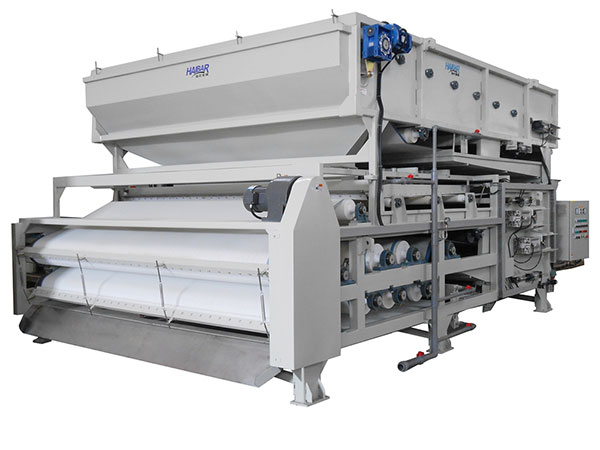

HTE3 Series Gravity Belt Filter Press for Thickening and Dewatering, Heavy Duty Type

Widely used in a variety of industries, the HTE3 belt filter press combines the thickening and dewatering processes into an integrated machine for sludge and wastewater treatment.

HAIBAR's belt filter presses are 100% designed and manufactured in house, and feature a compact structure in order to treat different types and capacities of sludge and wastewater. Our products are well known throughout the industry for their high efficiency, low energy consumption, low polymer consumption, cost saving performance and long service life.

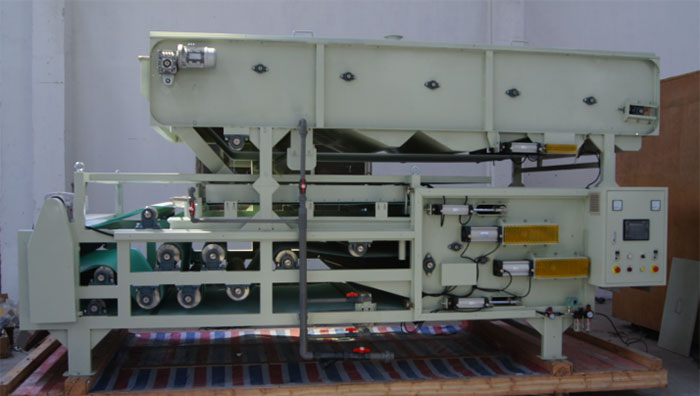

An HTE3 series belt filter press is a heavy duty filter press featuring a gravity belt thickening technology.

Features
1. Integrated gravity belt thickening and dewatering treatment process
2. Ultra-long thickening and dewatering works on nearly all sludge types.
3. Wide range and large treatment capacity applications
4. The best performance is found when the inlet consistency is 0.4-1.5%.
5. Installation is easy due to the compact structure.
6. Automatic, continuous, simple, stable, and safe operation
7. Environmentally friendly operations come through the low energy consumption and low noise emissions.
8. Easy maintenance leads to long term operation.
9. The patented flocculation system reduces polymer consumption.
10. The rollers come with up to 9 segments and feature an increased diameter, high shear strength and a small wrapped angle press to offer a maximized treatment effect and achieve an extremely low water content rate.
11. The pneumatic adjustable tension achieves ideal effects that are in full compliance with the treatment process.
12. A galvanized steel rack can be customized when the belt width reaches more than 1500mm.

Main Specifications
Model HTE3 -750 HTE3 -1000 HTE3 -1250 HTE3 -1500 HTE3 -2000 HTE3 -2000L HTE3 -2500 HTE3 -2500L
Belt Width (mm) 750 1000 1250 1500 2000 2000 2500 2500
Treating Capacity (m3/hr) 11.4~22 14.7~28 19.5~39 29~55 39~70 47.5~88 52~90 63~105
Dried Sludge (kg/hr) 60~186 76~240 104~320 152~465 200~640 240~800 260~815 310~1000
Water Content Rate (%) 65~84
Max. Pneumatic Pressure (bar) 6.5
Min. Rinse Water Pressure (bar) 4
Power Consumption (kW) 1 1 1.15 1.9 2.7 3 3 3.75

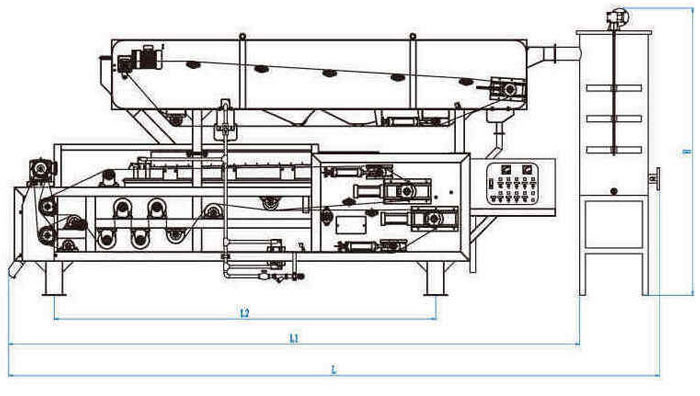

Dimensions Reference (mm) Length 4650 4650 4650 5720 5970 6970 6170 7170
Width 1480 1660 1910 2220 2720 2770 3220 3270
Height 2300 2300 2300 2530 2530 2680 2730 2730
Reference Weight (kg) 1680 1950 2250 3000 3800 4700 4600 5000

Note
1. Our company reserves the right to modify the above-mentioned specifications of this series heavy duty gravity belt thickening-dewatering belt filter press.
2. The treating capacity, dried sludge, and water content rate all depend on the varieties of sludge.
