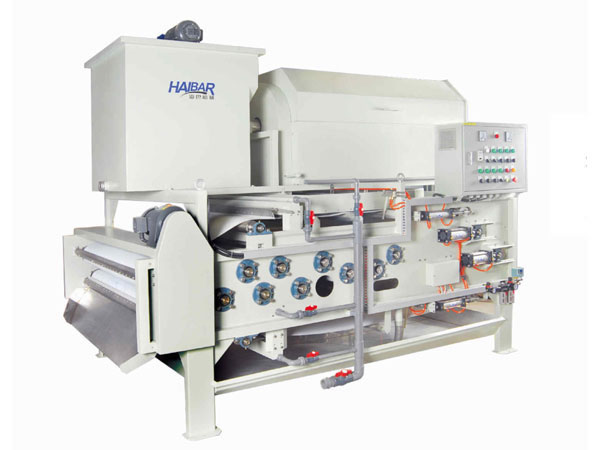

HTB Series Rotary Drum Belt Filter Press for Thickening and Dewatering, Standard Type

Widely used in a variety of industries, the HTB belt filter press combines the thickening and dewatering processes into an integrated machine for sludge and wastewater treatment.

HAIBAR's belt filter presses are 100% designed and manufactured in house, and feature a compact structure in order to treat different types and capacities of sludge and wastewater. Our products are well known throughout the industry for their high efficiency, low energy consumption, low polymer consumption, cost saving performance and long service life.

An HTB series belt filter press is a standard filter press featuring rotary drum thickening technology.

Features
1. Integrated rotary drum thickening and dewatering treatment processes
2. Wide range of normal applications
3. The best performance is found when the inlet consistency is 1.5-2.5%.
4. Installation is easy due to the compact structure and normal sizes.
5. Automatic, continuous, simple, stable and safe operation
6. Operation is environmentally friendly due to the low energy consumption and low noise levels.
7. Easy maintenance ensures the longevity of operation.
8. The patented flocculation system reduces the polymer consumption.
9. 7 to 9 segmented press rollers support different treatment capacities with the best treatment effect.
10. The pneumatic adjustable tension achieves an ideal effect in compliance with treatment processes.
11. A galvanized steel rack can be customized when the belt width reaches more than 1500mm.

Detailed Technical Data
Model HTB -500 HTB -750 HTB -1000 HTB -1250 HTB -1500 HTB -1500L HTB -1750 HTB -2000 HTB -2500
Belt Width (mm) 500 750 1000 1250 1500 1500 1750 2000 2500
Treating Capacity (m3/hr) 2.8~5.7 4.3~8.2 6.2~11.5 7.2~13.7 9.0~17.6 11.4~22.6 14.2~26.8 17.1~36 26.5~56
Dried Sludge (kg/hr) 45~82 73~125 98~175 113~206 143~240 180~320 225~385 270~520 363~700
Water Content Rate (%) 63~83
Max. Pneumatic Pressure (bar) 6.5
Min. Rinse Water Pressure
(bar)
4
Power Consumption (kW) 0.75 0.75 1.15 1.15 1.5 2.25 2.25 2.25 3

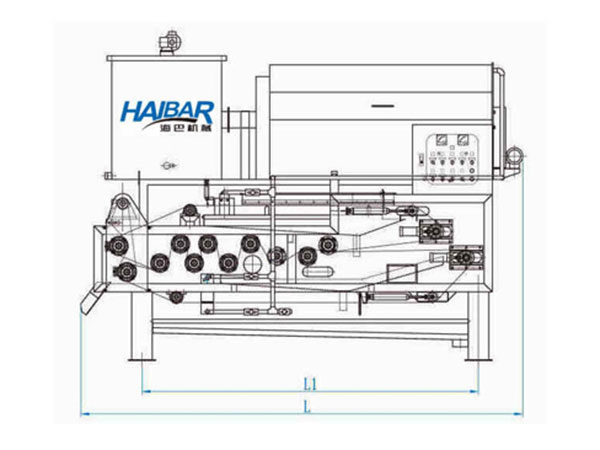

Dimensions Reference (mm) Length 2600 2600 2600 2600 2800 3200 3450 3450 3550
Width 1050 1300 1550 1800 2100 2150 2350 2600 3100
Height 2150 2300 2300 2300 2400 2400 2550 2550 2600
Reference Weight (kg) 950 1120 1360 1620 2050 2400 2650 3250 3850

Precautions
1. Our company reserves the right to change the above-mentioned specifications of our rotary drum thickening-dewatering system.
2. The dried sludge, treating capacity, and water content rate are decided by the varieties of sludge.
