An HNS series thickener works with a rotary drum thickening process to obtain a high solid content treatment effect.
Features
Higher than 96% solid recovery rate
Steady operation with little to no noise
Easy operation and maintenance ensures a long service life.
The perfect thickening effect can easily even out the varying sludge concentrations.
A 40% output capacity is larger than other machines that occupy the same amount of floor space.
The costs of land, construction and labor are all saved as this machine takes up less floor space with its simple structure, small flocculent requirements and fully automatic operation.
Parameter
Spec.
HNS-5
HNS-10
HNS-20
HNS-30
HNS-40
HNS-50
HNS-60
HNS-80
HNS-100
Machine Frame Material
Standard
Stainless steel(SUS304)
Option
Carbon steel(SS400/SS41), stainless steel(SUS316), other special materials
Filter Opening(micron)
30~80
30~80
30~80
30~80
30~80
30~80
30~80
30~80
30~80
Treating Capacity(m3/hr)
2~6
6~12
11~23.5
22~32.5
33~42.5
41~52
45~63
61~83
80~105
D.S Dried Sludge(kg/hr)
40~70
90~120
150~220
240~310
260~420
290~510
360~600
540~900
620~1250
Sludge Outlet Consistency(%)
3.5~11
3.5~11
3.5~11
3.5~11
3.5~11
3.5~11
3.5~11
3.5~11
3.5~11
Power Consumption(HP)
Standard
Driving Motor(Frequency control)
1/2
1/2
3/4
1
1
1
1*2
1*2
1*2
Flocculator Tank Motor
1/4
1/4
1/4
3/4
3/4
3/4
3/4
3/4
1
Option
Washing Pump
1
1
1
1
1.5
1.5
2
2
2
Lower Collecting Tray for Pressed Filtrate
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
External Dimensions(mm)
L1
2075
2085
2525
2525
2545
3015
2525
2545
3015
L
2708
2808
3344
3448
3548
4048
3498
3648
4148
W
938
1038
1058
1078
1128
1128
1800
1900
1900
H
1206
1340
1458
1535
1595
1845
1535
1595
1845
Weight
300
450
700
1050
1220
1320
1450
2000
2560
Working Principle
The slurry and flocculating polymer are poured into the conditioning tank of the rotary drum sludge thickener for uniform agitation. Then, the hardly dehydrated floc granules are formed, and flow into a drum for sludge-water separation. The conditioned sludge is guided into the fine mesh of the drum. A large amount of supernatant free water will be filtered, when a centrifuge rotates slowly under conditions of the rotational speed of 22r.p.m. and the power of 0.37kW per unit.
As a result, the slurry is thickened. The processing capacity of our rotary drum sludge thickener is improved, and the operating time is shortened. The separated sludge can highly reduce the load of the belt for permeating water. Meanwhile, the sludge group is constructed firmly. No sheet-flood or side-overflow phenomenon will occur. Then, the dehydration efficiency is enhanced, and the water content rate is lowered. After separation, the solids content of the free water varies from 0.5‰ to 1‰, which is closely related with the dosage and types of the polymer.
The semi-centrifugal rotary drum thickener can filter the free water by means of external force. It has high requirements for the polymer and the binding force of sludge. In comparison with the belt thickening machine, our rotary drum sludge thickener can offer the thickened sludge with lower water content. The sludge with its water content of over 1.5% is a better choice.

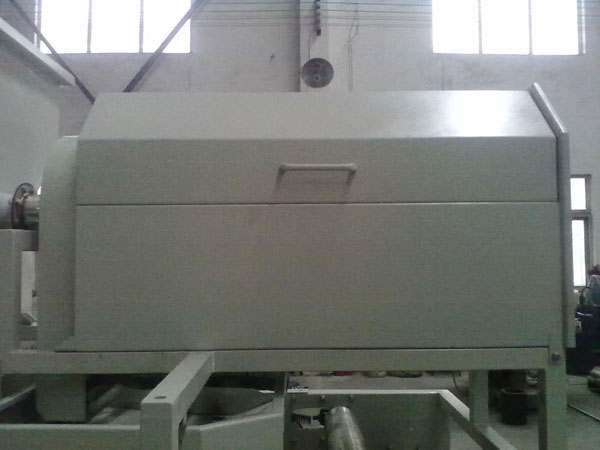

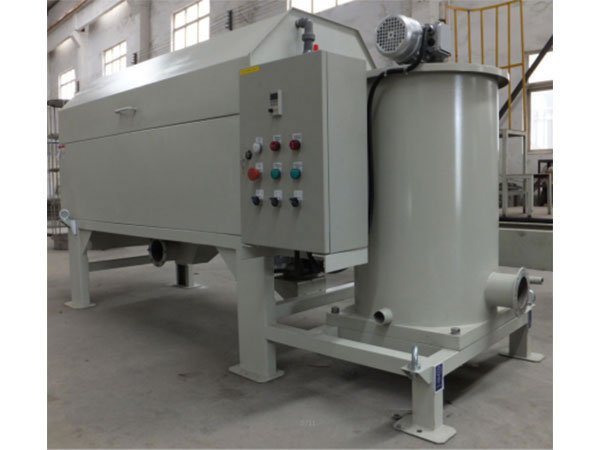

Side View of the Thickening Equipment

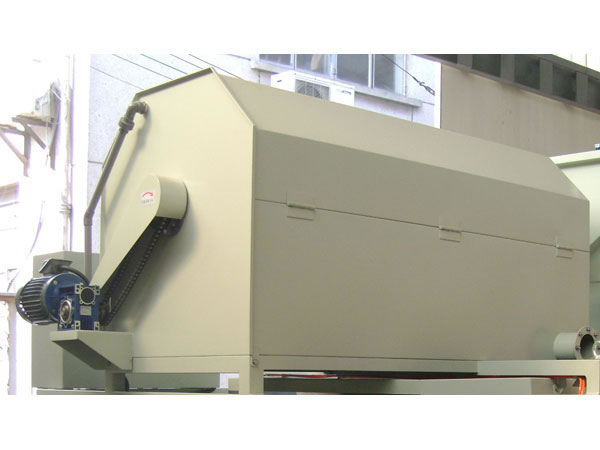

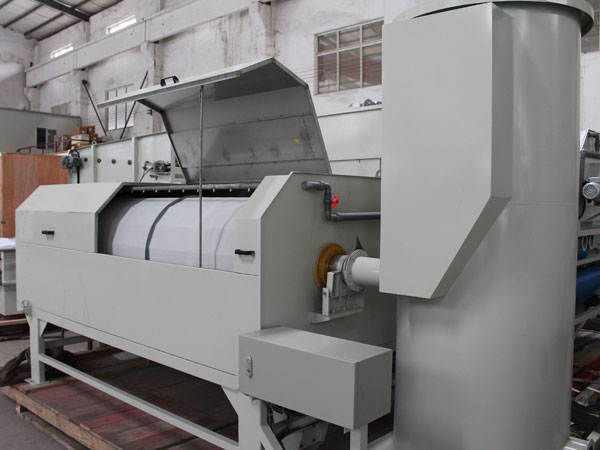

Side View of the Thickening Machine

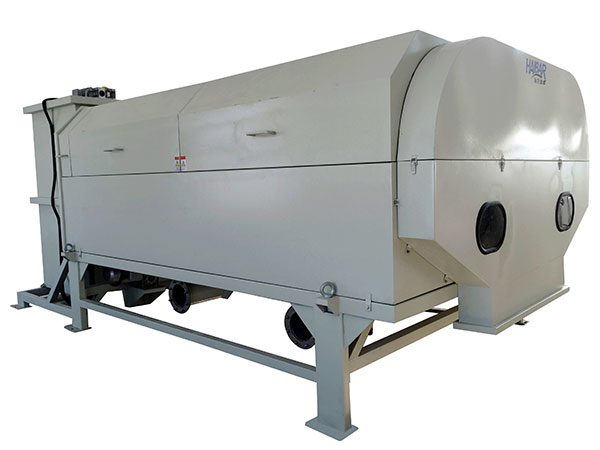

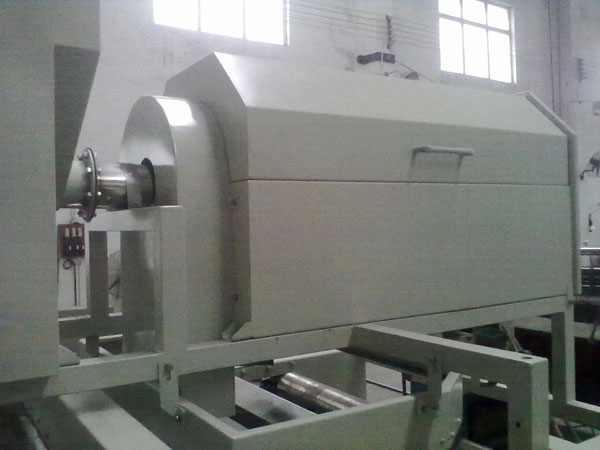

Front View of the Thickening Apparatus

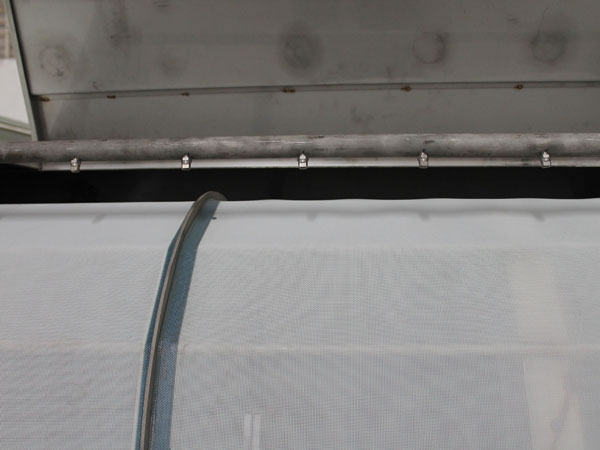

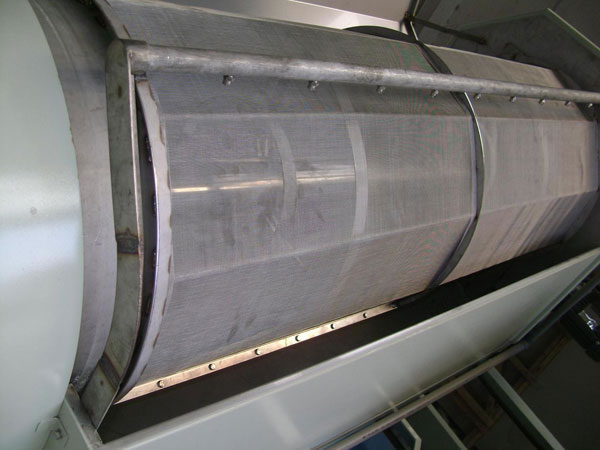

Screen in the Rotary Drum of the Thickener
Belt Cleaning Device of the HNS Conditioning Tank

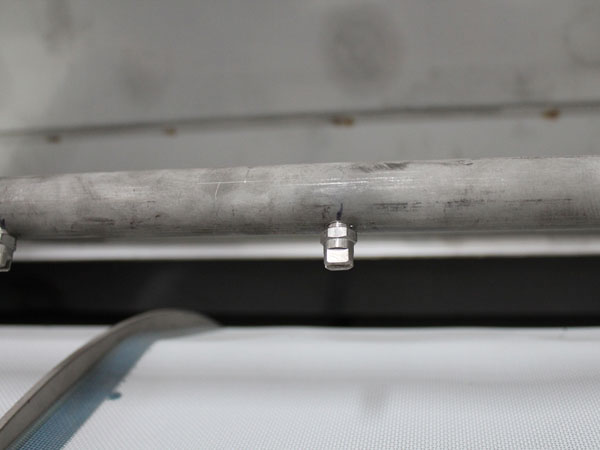

Stainless Steel Nozzle Imported from Japan
Cleaning Hose
The filter cloth imported from Germany features great air permeability, practical use, and long lifespan.
Conditioning Tank

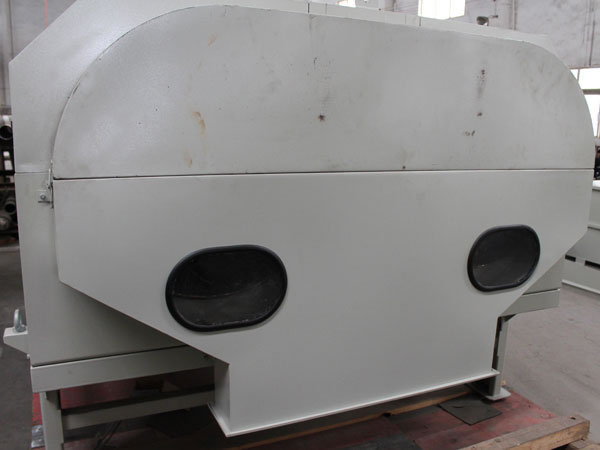

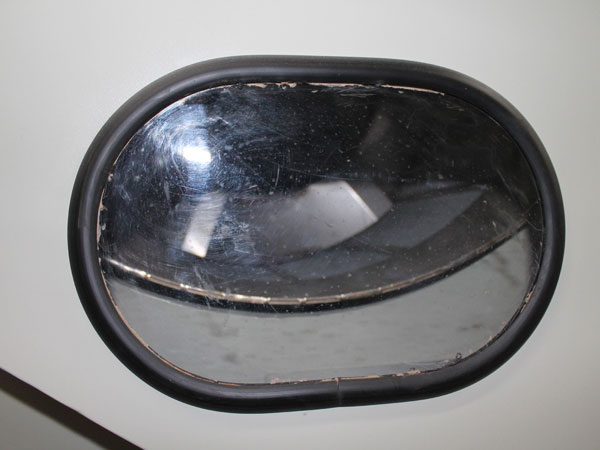

The sludge outlet and perspective window of the HNS-80 series rotary drum sludge thickener are specially designed for observing the operation of our equipment.
Sludge Outlet
Perspective Window

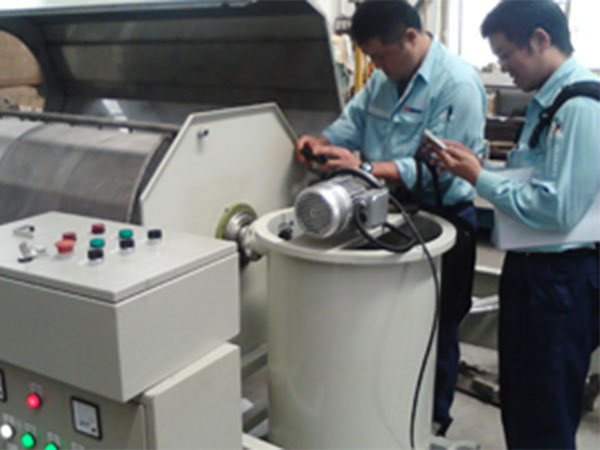

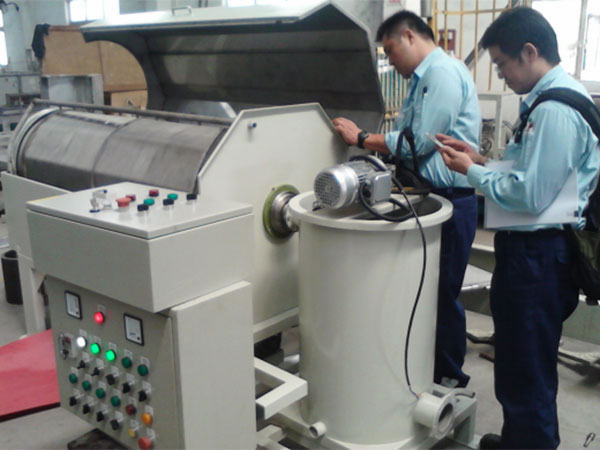

Cargo Examined by Japanese Customers before Delivery
