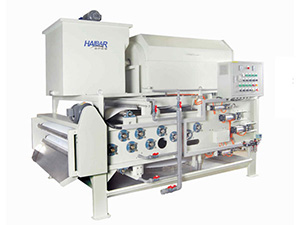

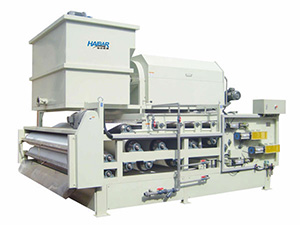

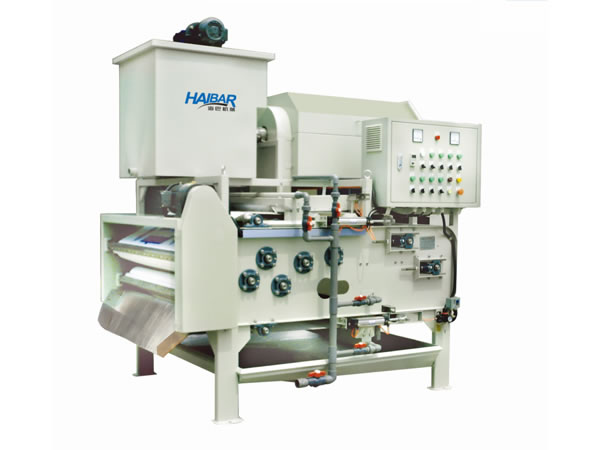

HTA Series Rotary Drum Belt Filter Press for Thickening and Dewatering, Economical Type

Widely used in a variety of industries, the belt filter press carries out a combined thickening and dewatering process and is an integrated device for sludge and waste water treatment.

HAIBAR's belt filter press is 100% in-house designed and manufactured, featuring a compact structure in order to treat different types and capacities of sludge and wastewater. Our products are well-known throughout the industry for their excellent performance, as well as their efficiency, low energy consumption, low polymer consumption, cost saving performance and long service life.

An HTA Series belt filter press is an economical belt press known for the rotary drum thickening technology.

Features
1. Integrated rotary drum thickening and dewatering treatment processes
2. Wide range of economical applications
3. The best performance is found when the inlet consistency is 1.5-2.5%.
4. Installation is easy due to the compact structure and small size.
5. Automatic, continuous, stable and safe operation
6. Environmentally friendly operation is due to the low energy consumption and low noise levels.
7. Easy maintenance assists in the long service life.
8. The patented flocculation system reduces polymer consumption.
9. The spring tension device is durable and features a long service life with no need for maintenance.
10. 5 to 7 segmented press rollers support different treatment capacities with the matched best treatment effect.

Main Specifications
Model HTA-500 HTA-750 HTA-1000 HTA-1250 HTA-1500 HTA-1500L
Belt Width (mm) 500 750 1000 1250 1500 1500
Treating Capacity (m3/hr) 1.9~3.9 2.9~5.5 3.8~7.6 5.2~10.5 6.6~12.6 9.0~17.0
Dried Sludge (kg/hr) 30~50 45~75 63~105 83~143 105~173 143~233
Water Content Rate (%) 66~84
Max. Pneumatic Pressure (bar) 3
Min. Rinse Water Pressure (bar) 4
Power Consumption (kW) 0.75 0.75 0.75 1.15 1.5 1.5
Dimensions (Reference) (mm) Length 2200 2200 2200 2200 2560 2900
Width 1050 1300 1550 1800 2050 2130
Height 2150 2150 2200 2250 2250 2600
Reference Weight (kg) 760 890 1160 1450 1960 2150

Note
1. Our company reserves the right to change the design of the above-mentioned specifications.
2. The treating capacity, dried sludge, and water content rate are determined by the varieties of sludge.
