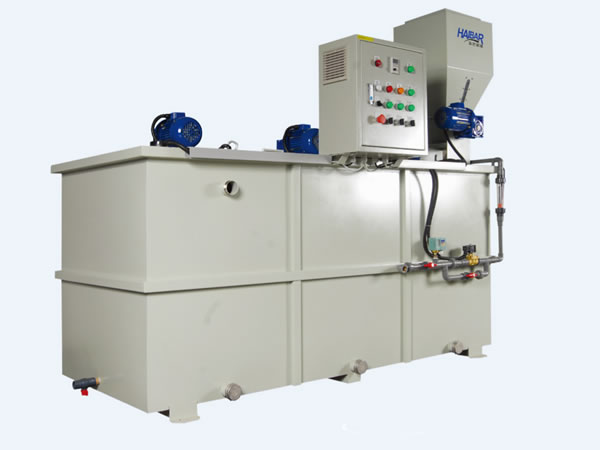

HPL2 Series Two Tank Continuous Polymer Preparation System
The HPL2 series continuous polymer preparation system is a kind of macromolecule automatic dissolver. It is composed of two tanks which are respectively used for liquid mixing and maturing. The separation of two tanks by a partition panel allows the mixture to enter the second tank successfully.
In comparison with the HPL3 series chemical dosing equipment, the HPL2 series product lacks a storage tank, thereby reducing the time of mixing the liquid. We suggest our customers to select the HPL2 series system for PAC preparation and dosing.
| Type | Design | Amount of medicine solution (Lt/hr) | Tank size (L) | Powder conveyor（HP） | Powder agitator（HP） | Material | Dimension(mm) | Weight | |||||
| Standard | Special | Length | Width | Height | L1 | W1 | |||||||
| HPL2-500 | 2 tank | 500 | 55 | 1/4 | 1/2*2 | SUS304 | SUS316 PP PVC FRP | 1750 | 850 | 1700 | 1290 | 640 | 240 |
| HPL2-1000 | 1000 | 55 | 1/4 | 3/4*2 | 2050 | 50 | 2000 | 1480 | 740 | 370 | |||
| HPL2-1500 | 1500 | 55 | 1/4 | 1*2 | 2300 | 1100 | 2000 | 1650 | 900 | 450 | |||
| HPL2-2000 | 2000 | 110 | 1/4 | 1*2 | 2650 | 1250 | 2250 | 2010 | 1030 | 510 | |||
