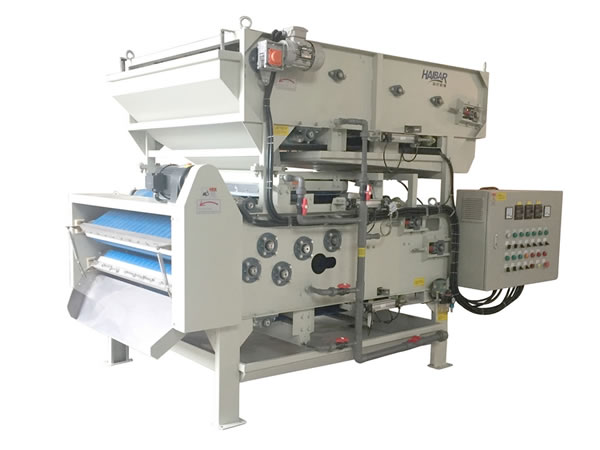

HTA3 Series Gravity Belt Filter Press for Thickening and Dewatering,Economical Type

Widely used in a variety of industries, the HTA3 belt filter press combines the thickening and dewatering processes into an integrated machine for sludge and wastewater treatment.

HAIBAR's belt filter presses are 100% designed and manufactured in house, and feature a compact structure in order to treat different types and capacities of sludge and wastewater. Our products are well known throughout the industry for their high efficiency, low energy consumption, low polymer consumption, cost saving performance and long service life.

An HTA3 series belt filter press is a heavy duty filter press featuring a gravity belt thickening technology.

Features
1. Integrated gravity belt thickening and dewatering treatment process
2. Longer staying period for the sludge after the redesign of the conditioning tank and thickener
3. Wide and economical application range
4. The best performance is given when the inlet consistency is 0.4-1.5%.
5. Installation is easy due to the compact structure and small size.
6. Automatic, continuous, simple, stable and safe operation
7. Environmentally friendly due to the low energy consumption and low noise levels
8. Economical and easy maintenance ensures a longer operation and service life.
9. The patented flocculation system reduces polymer consumption.
10. The spring tension device is durable, features a long service life and has no need for maintenance.
11. 5 to 7 segmented press rollers support different treatment capacities with the best treatment effect.

Technical Parameters
Model HTA3-750 HTA3-1000 HTA3-1250 HTA3-1500 HTA3-1500L
Belt Width (mm) 750 1000 1250 1500 1500
Treating Capacity (m3/hr) 3.5~9.5 6.5~13.8 8.5~17.6 10.6~22.0 14.6~28.6
Dried Sludge (kg/hr) 20~85 35~116 45~152 55~186 75~245
Water Content Rate (%) 69~84
Max. Pneumatic Pressure (bar) 3
Min. Rinse Water Pressure (bar) 4
Power Consumption (kW) 1.15 1.15 1.15 1.5 1.5
Dimensions Reference(mm) Length 2400 2500 2600 2750 3000
Width 1300 1550 1800 2050 2130
Height 2250 2250 2400 2450 2450
Reference Weight (kg) 1030 1250 1520 1850 2250

Attention
1. Our company reserves the right to alter the above-mentioned specifications of this series rotary drum thickening-dewatering belt filter press.
2. The treating capacity, dried sludge, and water content rate depend on the types of sludge.
